Sketch to jewelry.

A line, a silhouette, a piece of your own. Explore freehand forms, then go deeper with the Orbit pendant CAD study.

Open in the real Form UI ↗Get the project

Jewelry studio

Open Form Studio / jewelry

Orbit / The precision CAD study

THE SKETCH Editable circles · mm
Dimensioned 32 mm Orbit pendant sketch with a 2.4 mm extrusion
Download DXFSave drawing
THE OBJECT Metal appearance preview
Drag to orbit · arrow keys work too
Ø 32 mm · 35.52 mm overall · 2.4 mm thick

04 / Make it yours

Try a size, compare the proportions and keep the editable source.

The project keeps four sketch circles, four extrusions, one Fuse and one Cut.

Loading the CAD preview…

The nine prepared variants were rebuilt with Form’s exact CAD engine. The preview displays those solids and uses its own lighting. Choose a new diameter or depth to load the matching drawing and files.

Keep the drawing. Keep the decisions.

The Form project preserves the four circles, the concentric loop relationship, the drafting dimension, and the extrusion / Fuse / Cut history.

STEP solidSTL meshDXF sketch

Download the .form file, then choose Open project in Form. DXF keeps editable 2D circles; STEP keeps the CAD solid; STL is a triangle mesh. This is a design study—confirm fit, finishing and production details before making a physical piece.

THE FINISHED STUDY

An offset makes it yours.

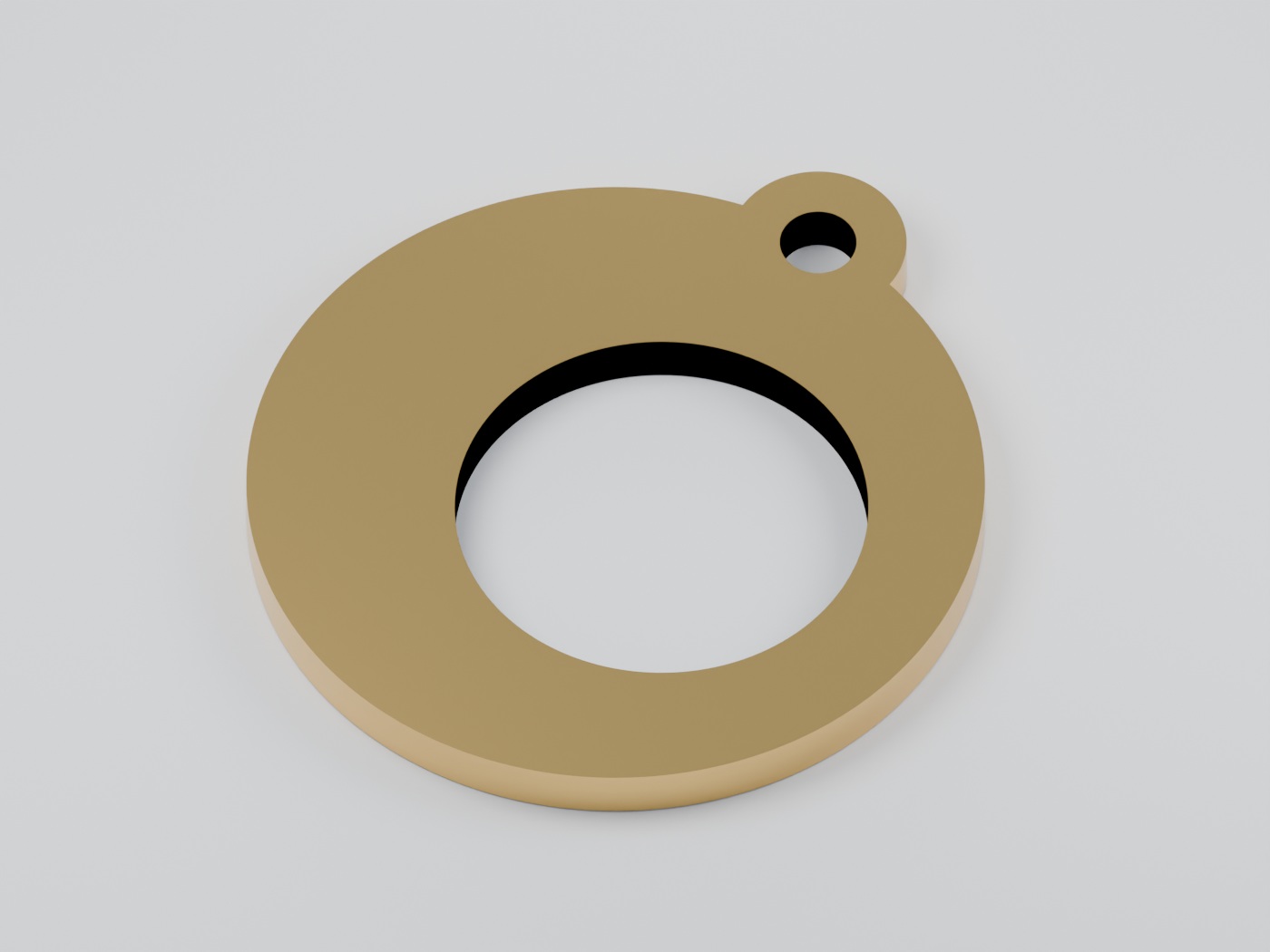

Gold appearance render of the exact Orbit pendant CAD geometry

Rendered from the 32 × 2.4 mm CAD model. The window sits 2.4 mm off center to give the ring a changing width.

YOUR SKETCH RECIPE

Every curve has a job.

ProfileCenter x, yDiameter
Pendant outline0, 032 mm
Chain loop0, 15.687.68 mm
Offset window2.4, 017.92 mm
Chain opening0, 15.683.328 mm

The two loop circles share a center. The window has its own offset, so its position can be revised independently in the sketch.

Try one change.

Start with 32 × 2.4 mm. Compare the 28 mm version, then increase the extrusion to 3.2 mm. Keep the camera still to judge the new proportions.

Finish presets are visual studies and do not specify an alloy or manufacturing process.

CONTINUE IN FORM

The same project. Inside the real app.

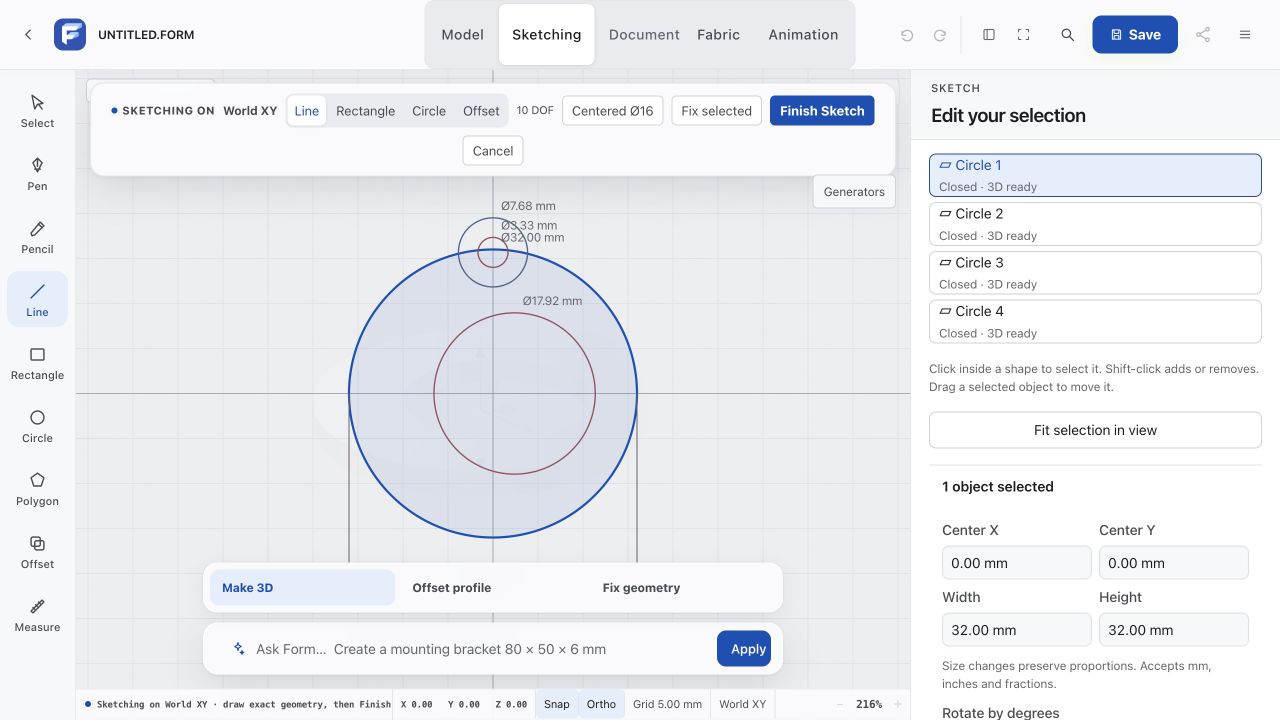

Orbit pendant open in Form’s Sketch workspace with four editable circle profiles
Sketch: select a circle, edit its dimensions, and keep the source geometry.
Orbit pendant open in Form’s Model workspace as one exact CAD body
Model: one exact body, with editable extrusion, Fuse and Cut history.
Rebuild the sketch in Form

Use these commands one at a time in Form’s CAD command field. Coordinates and diameters follow the selected size.

circle diameter 32 mm at 0, 0
circle diameter 7.68 mm at 0, 15.68
circle diameter 17.92 mm at 2.4, 0
circle diameter 3.328 mm at 0, 15.68
  1. Choose millimeters and the World XY sketch plane.
  2. Create the four circles. Keep the outline and loop on one layer; place the window and chain opening on a cutout layer.
  3. Extrude all four profiles to the selected depth.
  4. Select the outline and outer loop bodies and use Fuse.
  5. Select the joined blank first, then the window and chain tool bodies. Use Cut.
  6. Inspect the result from the front and side. Save the .form project before exporting the CAD solid.
